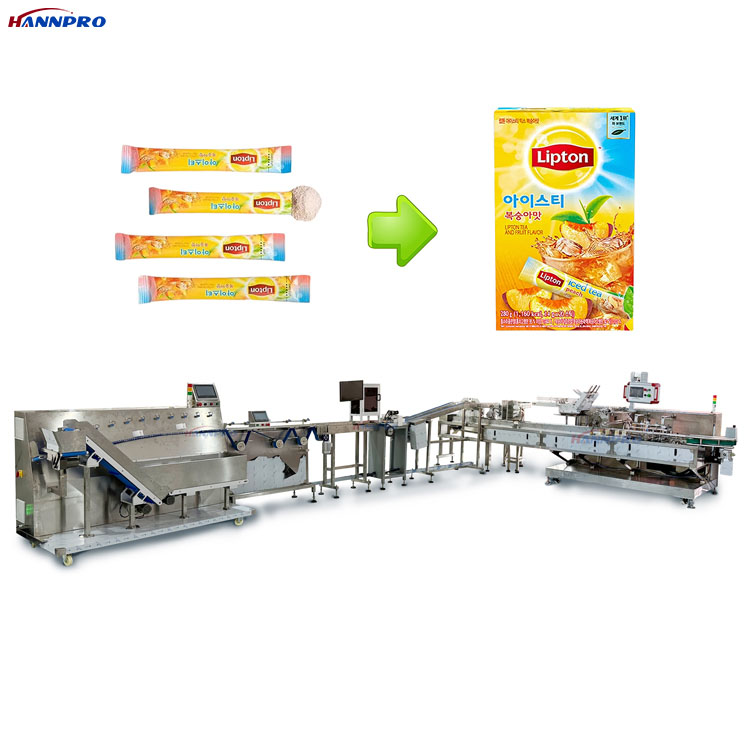

The automatic sorting, boxing and packaging line for small tea bags in the shape of strips is a highly automated production line specifically designed for processing and packaging small tea bags in the shape of strips tea bag packing machine. This kind of packaging line usually integrates multiple functions, including but not limited to automatic sorting, counting, boxing, sealing and labeling steps, aiming to improve production efficiency, ensure packaging quality and reduce labor costs tea packaging machine.
The automatic sorting, boxing and packaging line for small tea bags in the shape of strips is an integrated automated equipment used for sorting, counting, boxing and final packaging individual tea bags in the shape of strips (such as tea bags, coffee bags, etc.) tea bagging machine, and is suitable for batch production in the food and beverage industries tea packaging machine. The following is a detailed introduction from aspects such as process, core equipment, advantages, and application scenarios:

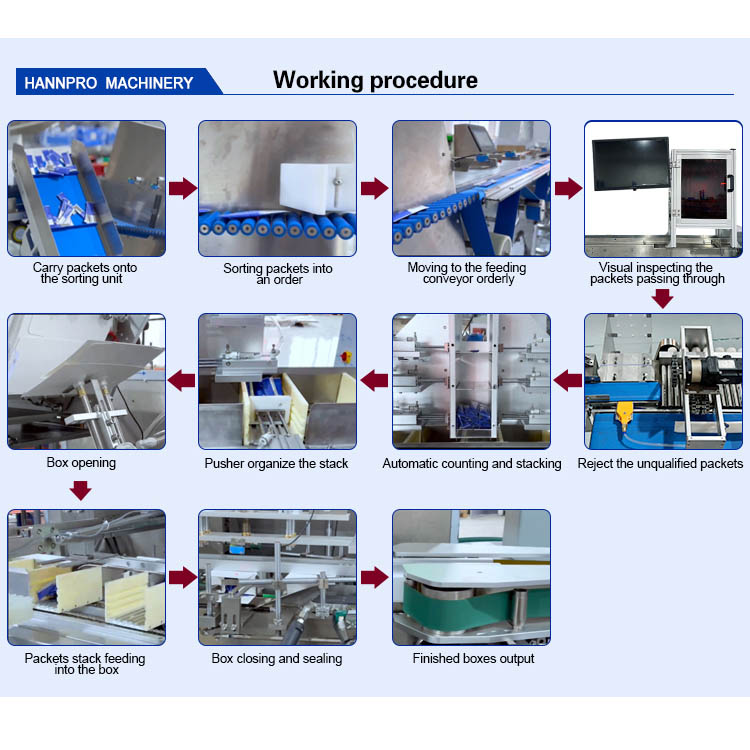

I. Working Principle of the Entire Process

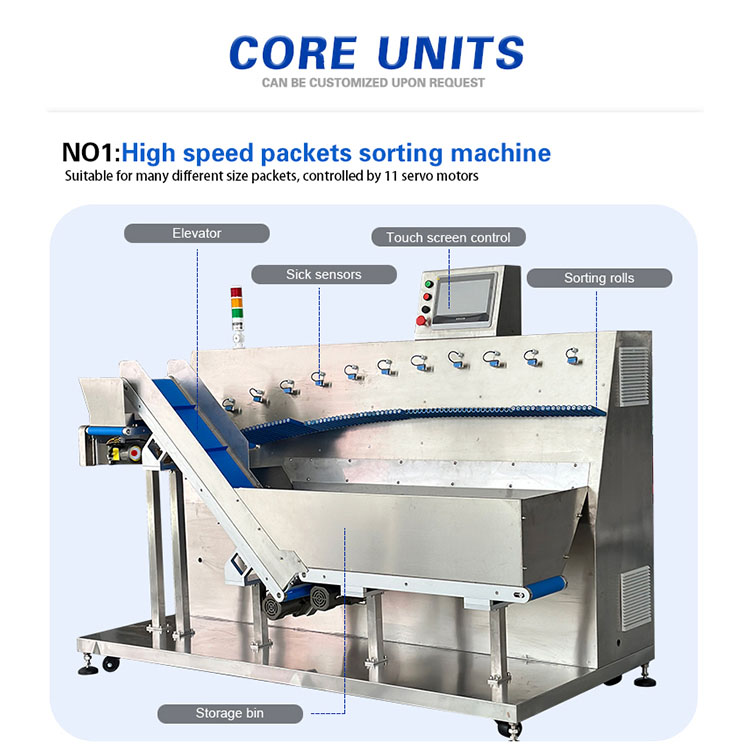

Sorting and organizing tea bags
Input stage: Bulk strip-shaped tea bags (such as already packaged small bags of tea bags) are conveyed to the sorting system through the conveyor belt tea packaging machine.
Directional sorting: By using photoelectric sensors, visual inspection systems or mechanical forks, the direction of tea bags is identified and their postures are adjusted to ensure that all tea bags enter the subsequent process in a uniform direction (such as with the seal facing up and the patterns aligned) tea bagging machine.
Defect elimination: Simultaneously inspect the appearance of the tea bags (such as damage or abnormal weight), and remove non-conforming products through air blowing or mechanical arms tea packaging machine.
Counting and boxing
Group counting: Use multi-row conveyor belts or rotary counting devices to group the tea bags according to the set quantity (such as 5 bags per box, 10 bags per box).

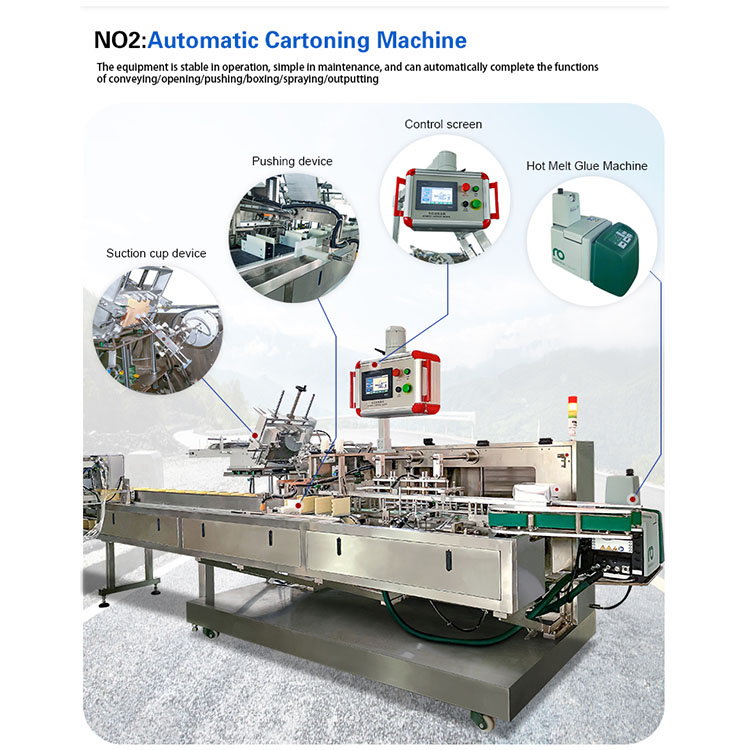

Automatic boxing
Box material preparation: Cartons or paper boxes are taken out from the material bin through the box suction mechanism and then stretched into regular box bodies by the forming machine.
Box insertion action: After grouping, the tea bags are transferred into the box by the push rod or vacuum suction cup to ensure they are neatly arranged tea packaging machine.
Box cover sealing: The box cover is sealed by hot melt adhesive, tongue insertion or snap fasteners. Some devices can print batch numbers or production dates simultaneously tea powder packing machine.
Box sorting and secondary packaging
Weighing inspection: Recheck the weight of the products after boxing and remove the boxes with missing or insufficient packages tea packaging machine.
Packing/film wrapping:
Multi-box consolidation: Stack multiple boxes according to a rule (such as 6 boxes per box, 12 boxes per box) and pack them into cartons or plastic boxes.
Film wrapping: The entire box of products is sealed with shrink film or a carton sealing machine to enhance transportation safety tea packaging machine.
Identification and Output
The inkjet printer prints information such as production date, shelf life and batch on the packaging box or outer box tea packaging machine.
The finished products are conveyed to the palletizing station by the conveyor belt or directly connected to the AGV trolley to enter the warehousing system.
