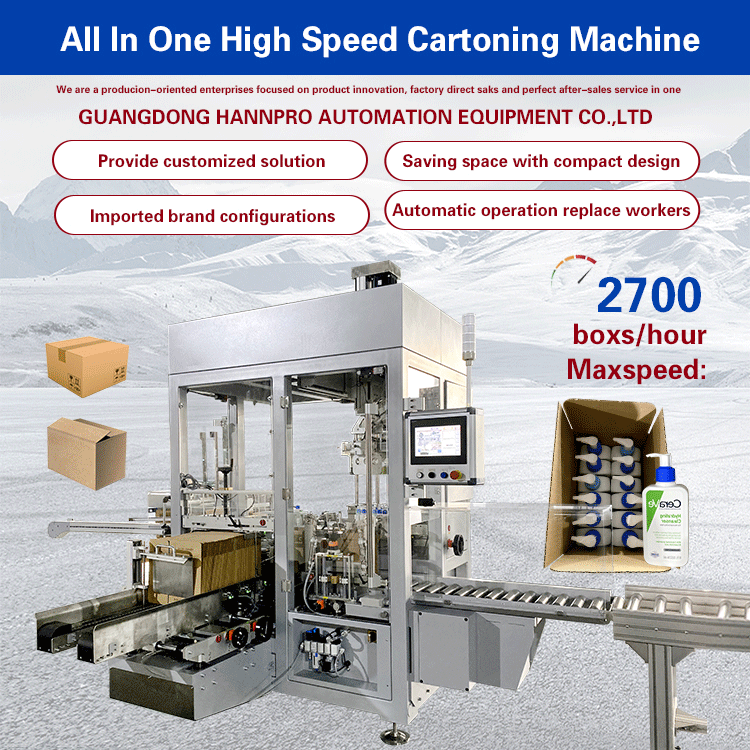

The automatic bottle packaging line is an automated equipment system that automatically arranges and arranges empty bottles or finished bottles (such as beverage bottles, medicine bottles, cosmetic bottles, etc.) and then packs them into cardboard boxes. It is widely used in industries such as food and beverage, pharmaceuticals, and cosmetics.
A complete automatic bottle packaging line usually consists of the following components:
Bottle feeding conveyor belt
Transfers bottles from the filling/labeling station to the packaging area automatic bottle carton packaging line.
Bottle sorting/alignment device
Uses baffles, servo push rods, and robotic arms to arrange the scattered bottles in the preset rows and columns.
Unpacking machine (optional)
Automatically takes boxes from the stack of cartons and opens them.
Packaging main unit
Common types:
Grabbing type (using robotic arms or suction cups to grasp)
Pushing type (using cylinders or servo push rods to push the entire row of bottles into the box)
Drop type (the box rises and the bottles fall from above)
Sealing machine (optional)
Automatically seals the bottom/top with tape.
Bottle exit conveyor line & Palletizing interface
Connects to subsequent palletizing robots or manual transfer.
Before making a purchase, please clarify the following parameters:
Bottle specifications: diameter, height, weight, material (PET/glass, etc.)
Packaging method: upright? horizontal? with partitions? bare packaging?
Number of bottles per box: such as 12 bottles per box, 24 bottles per box
Box size: length × width × height (mm)
Production line speed: bottles per minute or boxes per hour automatic bottle carton packaging line
Whether integration is required: linked with the upstream filling line and downstream palletizing machine?
By the beginning of 2026, the price of the automatic bottle carton packaging line (which includes functions such as automatic opening, bottling, and sealing) varies significantly depending on configuration, production capacity, automation level, and brand.
1. Price range based on configuration and function Table
Configuration typePrimary functionApplicable scenariosReference price (RMB)
Basic type of packing machine (single unit)Only automatically places bottles into manually placed cardboard boxesSmall factories, low-speed lines (< 10 boxes/minute)¥8,000 – ¥35,000
Semi-automatic packing lineAutomatic alignment + push-in packing, requires manual box placement/sealingMedium-sized beverage factories, pharmaceutical factories¥30,000 – ¥60,000
Fully automatic cardboard box packing line (mainstream)Automatic opening + bottle placement + automatic sealingDrinks, seasonings, cosmetics, etc.¥68,000 – ¥150,000
High-speed intelligent integrated lineServo control + visual positioning + multi-bottle type compatibility + docking palletizingMedium-large food/beverage enterprises¥180,000 – ¥400,000+
II. Key Influencing Factors for "Paper Box Filling"
Is the paper box automatically formed?
With automatic opening machine → +¥15,000 to ¥30,000
Bottle type and arrangement method
Round bottle vs Flat bottle automatic bottle carton packaging line, whether a partition is added, the number of bottles per box (e.g. 12/24/30 bottles)
Filling method
Grabbing type (high precision, expensive) vs Push-in type (economical) vs Drop type (suitable for light bottles)
Does it include sealing and conveying system?
A complete production line usually includes conveyor belts, sealing machines, and electrical control cabinets
Customization level
Non-standard design (such as special-shaped bottles, special paper boxes) will increase costs
The automatic bottle carton packaging line is a set of automated equipment system that automatically arranges, packs the bottled products (such as beverages automatic bottle carton packaging line, liquid medicines, seasonings, cosmetics, etc.) into cartons and completes the sealing process. It is suitable for medium and high-speed production lines and can significantly improve efficiency and reduce labor costs.
1. Bottle feeding conveyor belt: Receives bottles after upstream filling/labeling, and smoothly transports them to the row arrangement area.
2. Bottle row arrangement device: Arranges bottles in the designated rows (e.g., 4×6 = 24 bottles per box) using baffles, servo push rods, stepper motors or mechanical hands automatic bottle carton packaging line.
3. Automatic box opening machine: Picks boxes from the stack of cartons, automatically opens the form and seals the bottom (some include printing codes).
4. Packaging main machine: Packs the entire row of bottles into cartons. Common methods include:
• Grabbing type (suction cups/clamp arms, suitable for fragile bottles)
• Pushing type (economical and efficient, suitable for PET bottles)
• Dropping type (the box rises to receive the bottles, with a simple structure)
5. Automatic box sealing machine: Automatically folds the top of the filled carton and seals it with tape automatic bottle carton packaging line.
6. Out-of-box conveyor line: Transports the finished cartons to the stacking area or the manual transfer point.
7. Electrical control system: PLC + touch screen control, supporting fault alarms, speed adjustment, and multi-specification switching.
Before making the purchase, please clarify the following information:
Bottle specifications: diameter, height, weight, material (PET/glass/plastic)
Packaging method: upright? horizontal? whether to add partitions/trays?
Number of bottles per box: such as 12, 18, 24, 30 bottles per box
Carton size (inner diameter): length × width × height (mm)
Production cycle: target production capacity automatic bottle carton packaging line (e.g. 2000 bottles per hour ≈ 83 boxes per hour, calculated at 24 bottles per box)
Is it necessary to be compatible with multiple bottle types/carton types?
Is it connected to the upstream filling line or the downstream palletizing robot?
